Pure Steam Generator for Pharmaceutical Manufacturing

HIGHFINE PHARMATECH CO., LTD has built pharmaceutical equipment from its base in Haimen, Nantong, Jiangsu, China since 1992. Our pure steam generator is designed for plant engineers and procurement teams who need sterile, pyrogen-free steam for sterilization and critical process operations — with condensate that meets WFI standards. As a Sino-foreign joint venture, we supply pure steam generators alongside WFI stills and purified water systems, so steam generation, water treatment, and validation documentation can be sourced from a single manufacturer.

What Pure Steam Is — and Why Its Condensate Must Meet WFI Quality

Pure steam is steam produced from water that has already been purified, using equipment designed to prevent entrainment of impurities into the vapor. It is not the same as plant steam, utility steam, or filtered steam. The distinction matters because pure steam contacts sterile surfaces, product-contact equipment, and in some cases the product itself.

The practical test of a pure steam generator is its condensate. When pure steam condenses, the resulting liquid should meet Water for Injection quality — the same standard applied to water used in parenteral manufacturing. That means the generator must control both the chemistry of the feed water and the physical separation of droplets, particles, and endotoxins from the vapor phase. A generator that produces clean steam but carries over pyrogenic material in aerosol droplets has not done its job.

Regulators and quality teams therefore evaluate pure steam on two fronts: the steam quality at the point of use, and the documented performance of the condensate against USP WFI requirements.

How the Pure Steam Generator Works

HIGHFINE's pure steam generator combines two functions that must work together: precision evaporation and contaminant separation. The result is sterile, pyrogen-free steam with WFI-compliant condensate, removing more than 99% of contaminants including endotoxins and particles.

Precision evaporation

Feed water is evaporated under controlled conditions so that the vapor is generated at a stable, predictable rate. Precise control of the evaporation process keeps the vapor free of the turbulence that causes fine droplets to be carried upward, which is the most common route by which impurities enter a steam header.

Contaminant separation

Above the evaporating surface, the generator uses separation geometry to remove entrained droplets and fine particles from the rising vapor. Endotoxins do not volatilize — they travel in water droplets — so effective separation is the mechanism that delivers pyrogen-free steam rather than simply low-conductivity steam. Non-volatile impurities are concentrated in the blowdown and rejected from the system rather than carried into the distribution loop.

Key Applications

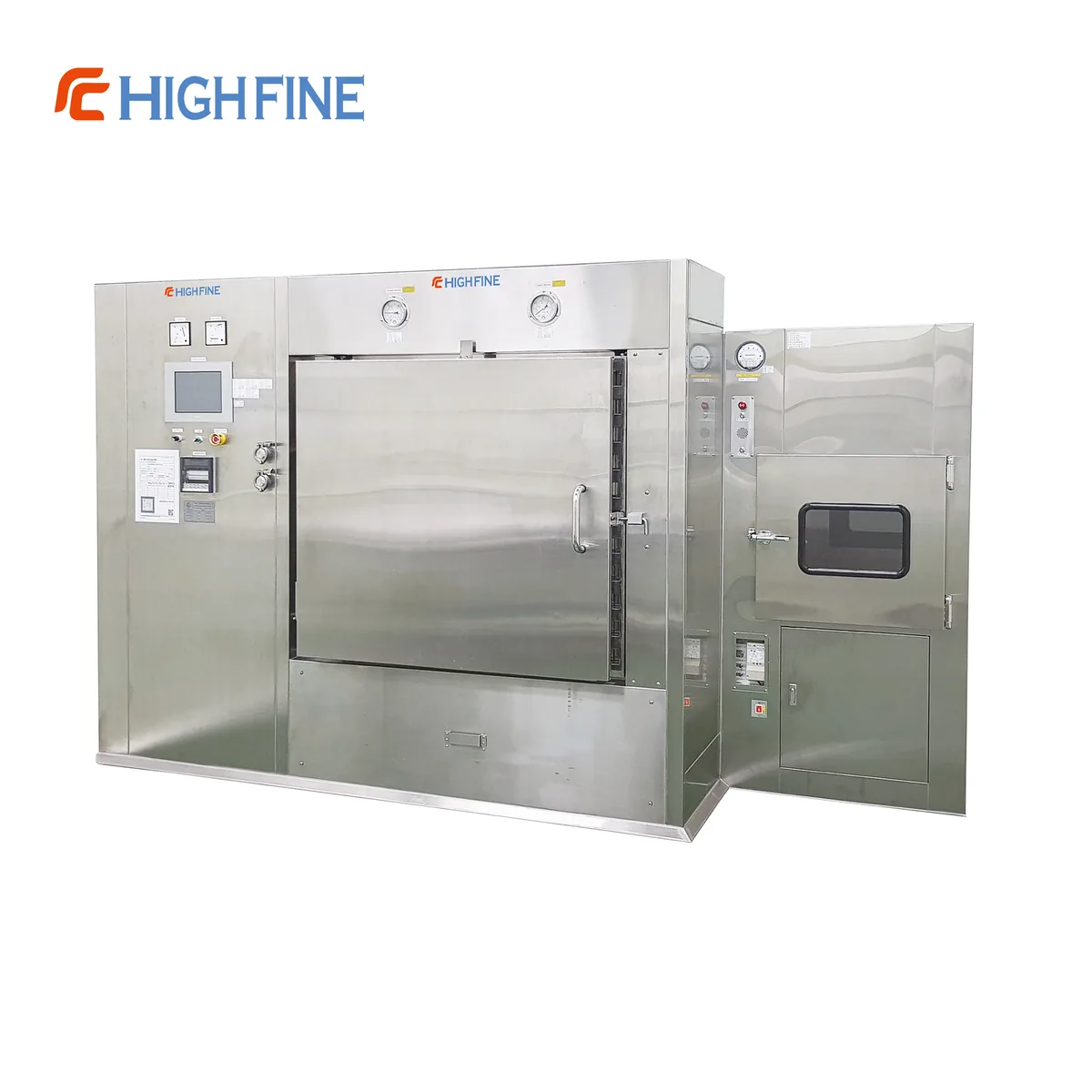

• Sterilization processes — autoclave chamber supply and sterilization-in-place (SIP) of bioreactors, tanks, transfer lines, filters, and fill-finish equipment.
• Cleanroom humidification — moisture addition in classified spaces where the humidification source must not introduce a contamination risk.
• Critical process operations — direct steam injection, product-contact heating, and other duties where the steam quality is part of the validated process.

Sizing and Selection Guidance

A pure steam generator should be selected against the load profile of the whole plant, not just the nameplate of one sterilizer. The following points help structure the conversation with our engineers.

Steam quality and condensate compliance

Define the required steam quality at the point of use and the condensate specification that your quality unit will accept. Confirm that the intended duty is pure steam rather than clean steam, and identify the worst-case simultaneous demand across autoclaves, SIP circuits, and humidification.

Materials of construction

Selection guidance typically specifies 316L stainless steel for wetted surfaces, with surface finish, welding standards, and passivation agreed at the design stage. Materials, finishes, and instrumentation should be documented and traceable so they can be referenced in your qualification package.

Documentation and validation

Request the documentation set early: material certificates, surface finish records, weld documentation, instrumentation calibration records, and operating and maintenance manuals. Agree the qualification support scope — DQ, IQ, OQ, and condensate sampling provisions — before the order is placed, because retrofitting documentation to delivered equipment is expensive.

Compliance with GMP, USP, EP, and FDA Expectations

The generator is designed for GMP, USP, EP, and FDA compliance, and it meets USP WFI standards for condensate. Design features that support this include sanitary construction, drainage to a defined low point, avoidance of dead legs in the steam path, and instrumentation that allows conditions to be monitored and recorded during routine operation.

Validation outcomes depend on installation, feed water quality, sampling practice, and operation as much as on the generator itself. We support customers through the qualification process, and certificates are available upon request.

Why a Single Supplier for Steam, Water, and Validation Matters

Pure steam is only one node in a connected system. The generator's condensate quality depends on the purified water feeding it; the WFI still downstream shares utilities, controls, and documentation conventions; and the validation protocol must cover all of them coherently. Buying the pure steam generator, WFI still, and purified water system from one manufacturer simplifies interface management, spare parts strategy, and change control.

HIGHFINE has supplied pharmaceutical water and steam equipment since 1992, with markets in Southeast Asia, the Middle East, Africa, Europe, and the Americas. Customers work with one engineering team across the water and steam scope, which reduces the coordination burden on plant engineers during design, commissioning, and qualification.

Get a System Quote

Send us your load profile, condensate specification, and documentation requirements, and our team will prepare a configuration for your plant.
